ProAll P95 Volumetric Mixer – 12-Yard Production Capacity

P95 OVERVIEW

For large projects and demanding landscapes, the P95 is the largest and most powerful mixer in the ProAll lineup. Designed for high-volume production, it excels in large-scale and long-term construction projects, making it ideal for remote locations. When it comes to handling big loads, the P95 proves that bigger is indeed better.

PRODUCT INFORMATION SHEET

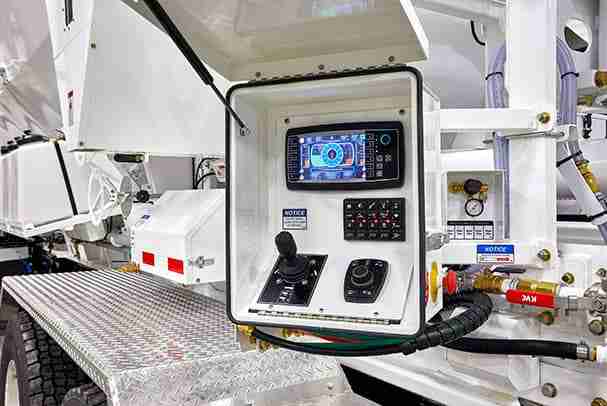

Control System

We began by unveiling our flagship control system, setting the standard as the most advanced offering in the industry. Now, we’re ushering in a new era of control with our groundbreaking technology: Commander 2.0 by ProAll – A Terex Brand. Featuring an intuitive graphical interface, it not only streamlines operations but also simplifies training, empowering operators to effortlessly achieve optimal results.

“The 2.0 is the interface we have been missing!”

– Ken Hardman, Advantage Concrete in Melbourne, Florida USA

Product Details

Technical Specifications

Production Capacity (m³/yd³)

9.2m³ / 12yd³

Production Rate (m³/hr) (yd³/hr)

70m³/hr (90yd³/hr)

Aggregate Bin (m³/yd³)

6.25m³ / 221ft³

Sand Bin (m³/yd³)

5.46m³ / 193ft³

Cement Bin (m³/yd³)

3.2m³ / 113ft³

Water Tank (L/US gal)

2250L / 600gal

Available Mixer Configurations

ProAll Package

More Info

Custom Fit

Mixer Only

Standard Features

Two-way wireless remote:
Two-way, wireless, digital remote for easy operator use. Operate the mixer, make adjustments, or start and stop production, all with one easy to use remote.

Automated two product admix system :
Two-product chemical admixture system. Once the mixer is calibrated, simply input how much of each admix chemical you require per yard and let the Commander do the rest. This automated admix system ensures you are getting the right amount chemical in every yard of concrete you pour. Standard tank sizes are 40L/10gal and 80L/20gal.

Electric roll-up tarp:
An electric roll-up mesh tarp. A toggle switch on the side of the mixer is used to cover and uncover the aggregates.

Ticket Printer in cab of truck:
An electric roll-up printer is mounted in the cab of the truck and is used to print the details of a completed batch or job.

Automated water system with manual override:
No more chasing your slump. The Commander’s automated water system ensures you are getting the exact amount of water required for the selected mix design. The system also has a manual override so adjustments can be made as needed.

Aluminum fenders for drive axles:
Checker plate aluminum fenders for the drive axles of the truck.

Electric Vibrators for sand, stone, and cement bins:
Two electric vibrators are mounted on the inside wall of the sand bin with an additional electric vibrator mounted on the exterior of the cement bin. The vibrators are automated and can be set to run at a predetermined interval to ensure a consistent flow of material.

Variable Speed Cement Metering (not limited to only 2 speeds):
The variable speed cement metering auger gives the control system the ability to automatically adjust the speed of the metering auger to meet the quantity of cement required for the selected mix design. This allows for use of multiple mix designs with various cement content without having to manually change gears or recalibrate.

Automated Chain Oiler:
A container on the side of the mixer which is filled with oil automatically distributes oil to the chain of the belt at a predetermined number of belt rotations. How often and how long the chain oiler is engaged can be modified using the on-board control system.

Additional Options

1-Year Spare Parts Package for P-Models 9″ Auger

1-Year Spare Parts Package for P Models – 12″ Auger

Additional Automated Admix Systems: Avaliable in 40L/10gal and 80L/35gal

Additional Automated Admix System: 170L/45gal (Side Mount)

Additional Vibrator

Aluminum Tool Box (admix-mounted)

Aluminum Toolbox (bought-out)

Aerator System for Single Cement Bin

Aggregate Bin Liner

Aluminum Fenders (does not include lift axel fenders/super single)

Auto Lube System

Belt Material Sensors

Cement Bin Safety Rail

Cement Low-Level Sensor

Color Feeder

Custom Paint

Dual Water Tank Fill

Large 133 Cubic Foot Cement Bin

Fiber Feeder – Pre-Chopped

Fiber Feeder – Standard

Gate Height Verification Sensors

Heat Exchanger – Water Tank

Heat Exchanger with Water Recirculation and Heating Coil for Admix Tanks

Severe Duty Belt

High/Low Cement Bin Sensor/Light Package

Load Cell System

Mix Bowl Cover

Mixer Diaper

Pressure Washer

Rear Ladder & Platform 13″ Standard

Swivel Chute

Upgrade to 100/71 Hydraulic Pump (Standard 71/45)

Upgrade to 9″ x 116″ Mixing Auger

Upgrade to 12″ Mixing Auger

Verification Package (Load Cells, Belt Materials, Gate Height, Water Level, and Low-Level Cement)

Insulated Water Tank

Washout Kit

Water Level Sensor

Water Tank Safety Rail

Weather Proof Electronically Operated Cramaro Tarp Upgrade

Additional Work Lights: Four Additional Flood Lights

White Noise Alarms

Backup Camera with 7″ HD Screen (3 Inputs) with Single Camera and Audio)

Backup Camera with 7″ Standard DefScreen (1 Input) with Single Camera

Additional Camera W Connector for HD Assembly

Upsize Water Lines: Deliver up to 68gal/min to Mix Bowl

Latex Modified Package: (2) 400-gallon Water Tanks with Independent Pumps

(2) 400-gallon Water Tanks with Single Pump

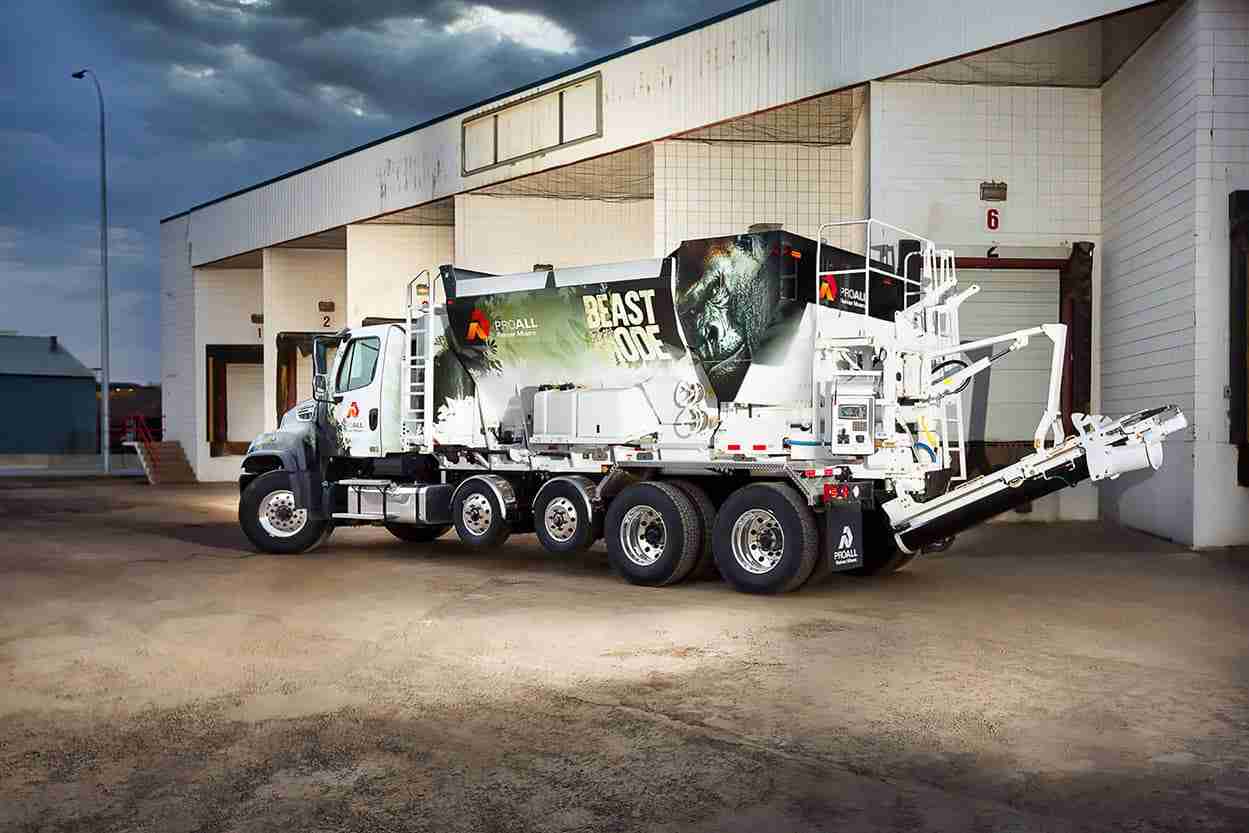

P95 mixer with the decal and text reading Beast mode
